The pymrm immersed-boundary tools specify conditions per wall crossing.
Unlike domain-wall boundary conditions, there is no natural way to broadcast a
value along an immersed wall. For dispersed systems the pattern we usually
want is piecewise constant per body: give every particle its own surface or
interface condition.
pymrm.segmentation restores that workflow. segment_domain labels the
disjoint regions of the signed distance field; crossing_segments tells you
which body each crossing bounds; and segment_values /
combine_interface_conditions expand per-body data to the per-crossing arrays
that apply_ibm / apply_ibm_interface consume. Point data follows the
canonical shape (n_crossings, *ns_shape), so per-component values broadcast
exactly like they do for wall boundary conditions.
import numpy as np
import scipy as sp
from scipy.sparse import csc_array
from scipy.sparse.linalg import spsolve
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from pymrm import (
construct_grad, construct_div, construct_coefficient_matrix,
construct_ibm, apply_ibm, apply_ibm_vector,
construct_ibm_normal_derivative, apply_ibm_interface,
segment_domain, crossing_segments, segment_values, segment_field,
wall_contact, wall_patch, wall_values, combine_interface_conditions,
)
L, N = 1.0, 81
x_f = [np.linspace(0.0, L, N + 1), np.linspace(0.0, L, N + 1)]
x_c = [0.5 * (xf[:-1] + xf[1:]) for xf in x_f]
X, Y = np.meshgrid(x_c[0], x_c[1], indexing='ij')
def disk(cx, cy, r):
return np.hypot(X - cx, Y - cy) - r
def diffusion_operator(shape, spatial_axes, D=1.0, cwall=0.0):
'''div(-D grad) with zero-Dirichlet domain walls; returns (matrix, source).'''
n = int(np.prod(shape))
diff, g = csc_array((n, n)), np.zeros((n, 1))
for i in spatial_axes:
bc = ({'a': 0, 'b': 1, 'd': cwall}, {'a': 0, 'b': 1, 'd': cwall})
gm, gb = construct_grad(shape, x_f[i], x_c[i], bc=bc, axis=i, format='csc')
dv = construct_div(shape, x_f[i], axis=i, format='csc')
diff = diff + dv @ (-D * gm)
g = g + dv @ (-D * gb)
return diff, np.asarray(g).reshape(-1)Three immersed bodies¶

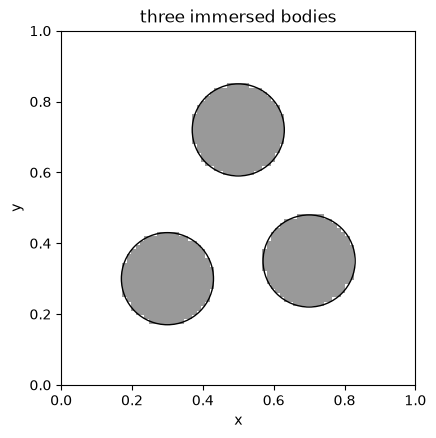

Three well-separated disks in a fluid domain. The SDF is the union (pointwise minimum) of the three disk SDFs.
disks = [(0.30, 0.30, 0.13), (0.70, 0.35, 0.13), (0.50, 0.72, 0.13)]
sdf = np.full((N, N), np.inf)
for cx, cy, r in disks:
sdf = np.minimum(sdf, disk(cx, cy, r))
fig, ax = plt.subplots(figsize=(4.6, 4.6))
ax.pcolormesh(x_f[0], x_f[1], (sdf < 0).T, cmap='Greys', shading='flat', alpha=0.4)
for cx, cy, r in disks:
ax.add_patch(Circle((cx, cy), r, fill=False, color='k'))
ax.set_aspect('equal'); ax.set_title('three immersed bodies'); ax.set_xlabel('x'); ax.set_ylabel('y')
plt.show()

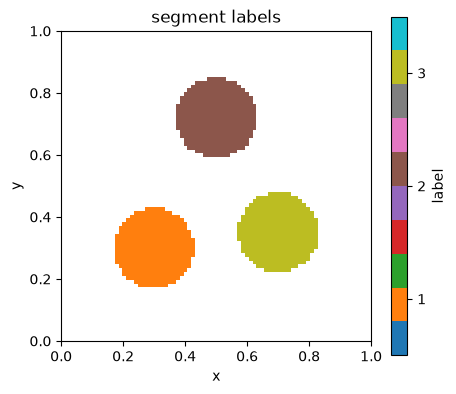

Segment the domain¶
segment_domain(sdf) labels the connected solid regions (sdf < 0) with
scipy.ndimage.label. Face connectivity (connectivity=1, the default)
matches the staircase boundary of the IBM crossings. wall_contact reports
which bodies reach a domain wall — here none do.
seg = segment_domain(sdf)
print('n_segments:', seg.n_segments, ' sizes:', seg.sizes)
fig, ax = plt.subplots(figsize=(5.0, 4.4))
m = ax.pcolormesh(x_f[0], x_f[1], np.ma.masked_equal(seg.labels, 0).T,
cmap='tab10', vmin=0.5, vmax=seg.n_segments + 0.5, shading='flat')
ax.set_aspect('equal'); ax.set_title('segment labels'); ax.set_xlabel('x'); ax.set_ylabel('y')
fig.colorbar(m, ax=ax, ticks=range(1, seg.n_segments + 1), label='label')
plt.show()
print('touches any domain wall:', wall_contact(seg).any(axis=(1, 2)))n_segments: 3 sizes: [347 351 348]
touches any domain wall: [False False False]

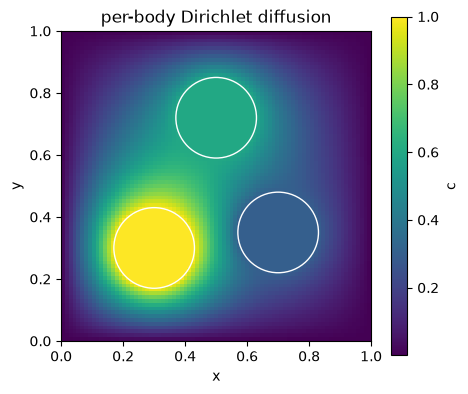

Per-body Dirichlet condition¶
Hold each body at its own surface concentration. segment_values maps the
{label: value} dictionary onto the crossings; apply_ibm then folds the
immersed Dirichlet condition into the diffusion operator. The fluid diffuses
between the bodies and the zero-concentration domain walls.
shape1 = (N, N)
ibm1 = construct_ibm(sdf, x_c, axes=(0, 1), shape=shape1)
diff, g_bc = diffusion_operator(shape1, (0, 1))
surf = segment_values({1: 1.0, 2: 0.6, 3: 0.3}, seg, ibm1) # per-body surface value
A, g_wall = apply_ibm(diff, ibm1, values_outside=surf, values_inside=surf)
u = spsolve(A.tocsc(), apply_ibm_vector(-g_bc, ibm1) - g_wall)
fig, ax = plt.subplots(figsize=(5.0, 4.4))
m = ax.pcolormesh(x_f[0], x_f[1], u.reshape(shape1).T, shading='flat', cmap='viridis')
for cx, cy, r in disks:
ax.add_patch(Circle((cx, cy), r, fill=False, color='w'))
ax.set_aspect('equal'); ax.set_title('per-body Dirichlet diffusion'); ax.set_xlabel('x'); ax.set_ylabel('y')
fig.colorbar(m, ax=ax, label='c'); plt.show()

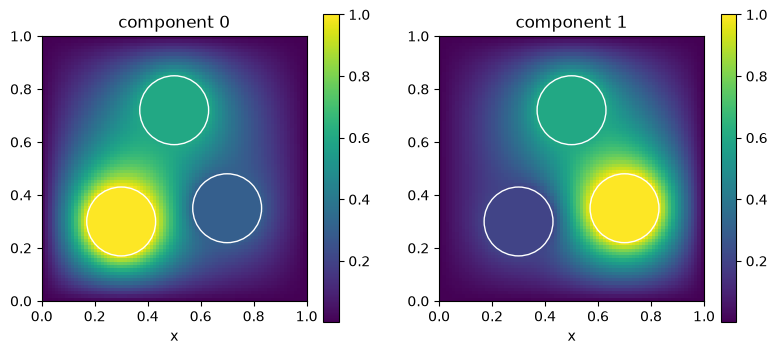

Multi-dimensional broadcasting: per body and per component¶
With a component axis the point data has canonical shape
(n_crossings, n_c). A per-body value is now a length-n_c vector, and
segment_values broadcasts it over the crossings automatically — exactly the
broadcasting you get for wall boundary conditions.
Nc = 2
shapeC = (N, N, Nc)
ibmC = construct_ibm(sdf, x_c, axes=(0, 1), shape=shapeC)
diffC, g_bcC = diffusion_operator(shapeC, (0, 1))
surfC = segment_values({1: [1.0, 0.2], 2: [0.6, 0.6], 3: [0.3, 1.0]}, seg, ibmC)
print('per-body / per-component point values:', surfC.shape) # (n_crossings, Nc)
AC, g_wallC = apply_ibm(diffC, ibmC, values_outside=surfC, values_inside=surfC)
uC = spsolve(AC.tocsc(), apply_ibm_vector(-g_bcC, ibmC) - g_wallC).reshape(shapeC)
fig, axs = plt.subplots(1, Nc, figsize=(9.4, 4.0))
for k in range(Nc):
m = axs[k].pcolormesh(x_f[0], x_f[1], uC[:, :, k].T, shading='flat', cmap='viridis')
for cx, cy, r in disks:
axs[k].add_patch(Circle((cx, cy), r, fill=False, color='w'))
axs[k].set_aspect('equal'); axs[k].set_title(f'component {k}'); axs[k].set_xlabel('x')
fig.colorbar(m, ax=axs[k])
plt.show()per-body / per-component point values: (252, 2)

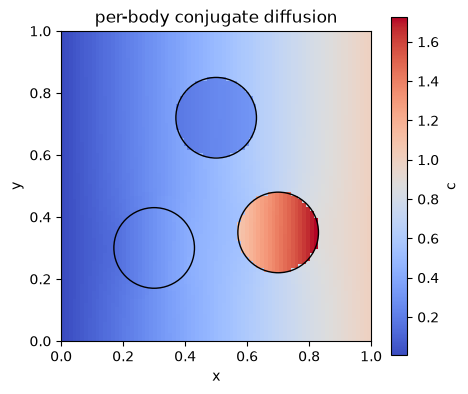

Per-body interface conditions (conjugate diffusion)¶
Give each body its own internal diffusivity D_in and partition coefficient
K and solve the conjugate problem across the interface.
combine_interface_conditions merges the per-body ic dictionaries into a
single per-crossing ic for apply_ibm_interface; segment_field builds the
matching cell-centred diffusivity. A left→right gradient (c=0 at x=0,
c=1 at x=1) drives the transport.
D_out = 1.0
body_ic = {
1: ({'a': (D_out, 0.5), 'b': (0, 0), 'd': 0}, {'a': (0, 0), 'b': (1, -1.0), 'd': 0}),
2: ({'a': (D_out, 2.0), 'b': (0, 0), 'd': 0}, {'a': (0, 0), 'b': (1, -2.0), 'd': 0}),
3: ({'a': (D_out, 0.2), 'b': (0, 0), 'd': 0}, {'a': (0, 0), 'b': (1, -0.5), 'd': 0}),
}
ic = combine_interface_conditions(body_ic, seg, ibm1)
recon = construct_ibm_normal_derivative(ibm1, sdf, x_c)
# Cell-centred diffusivity: D_in inside each body, D_out in the fluid.
D_field = segment_field({1: 0.5, 2: 2.0, 3: 0.2}, seg, default=D_out)
D_mat = construct_coefficient_matrix(D_field, shape=shape1)
# Bare Laplacian with the driving gradient, then scale by the cell-centred D.
bcs = (({'a': 0, 'b': 1, 'd': 0.0}, {'a': 0, 'b': 1, 'd': 1.0}),
({'a': 1, 'b': 0, 'd': 0.0}, {'a': 1, 'b': 0, 'd': 0.0}))
Lap, g_lap = csc_array((N * N, N * N)), np.zeros((N * N, 1))
for i, bc in enumerate(bcs):
gm, gb = construct_grad(shape1, x_f[i], x_c[i], bc=bc, axis=i, format='csc')
dv = construct_div(shape1, x_f[i], axis=i, format='csc')
Lap = Lap + dv @ gm
g_lap = g_lap + dv @ gb
g_lap = np.asarray(g_lap).reshape(-1)
L_cc = -(D_mat @ Lap)
g_cc = -np.asarray(D_mat @ g_lap).reshape(-1)
A_ic, g_ic = apply_ibm_interface(L_cc, ibm1, recon, ic)
u_ic = spsolve(A_ic.tocsc(), apply_ibm_vector(-g_cc, ibm1) - g_ic).reshape(shape1)
fig, ax = plt.subplots(figsize=(5.0, 4.4))
m = ax.pcolormesh(x_f[0], x_f[1], u_ic.T, shading='flat', cmap='coolwarm')
for cx, cy, r in disks:
ax.add_patch(Circle((cx, cy), r, fill=False, color='k'))
ax.set_aspect('equal'); ax.set_title('per-body conjugate diffusion'); ax.set_xlabel('x'); ax.set_ylabel('y')
fig.colorbar(m, ax=ax, label='c'); plt.show()

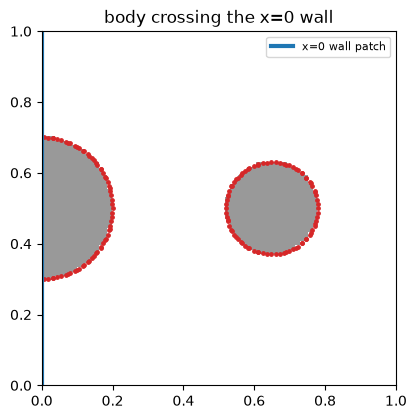

Domain-wall patches¶
Where a body intersects a domain wall, wall_patch returns the body labels on
that wall shaped as a full-field coefficient, and wall_values turns a
per-body value into a ready {a, b, d} coefficient. This lets a wall-touching
body carry the same condition on its wall patch as on its immersed part.
sdf_w = np.minimum(disk(0.0, 0.5, 0.20), disk(0.65, 0.5, 0.13))
seg_w = segment_domain(sdf_w)
ibm_w = construct_ibm(sdf_w, x_c, axes=(0, 1), shape=(N, N, Nc))
print('wall contact per body [axis, (lower, upper)]:')
print(wall_contact(seg_w))
patch = wall_patch(seg_w, ibm_w, axis=0, side='lower')
on_wall = np.unique(seg_w.labels[0]); on_wall = on_wall[on_wall > 0]
print('patch shape (full-field rank):', patch.shape, ' labels on x=0 wall:', on_wall)
wv = wall_values({int(on_wall[0]): [1.0, 0.4]}, seg_w, ibm_w, axis=0, side='lower')
print('wall_values shape (BC coefficient):', wv.shape)
fig, ax = plt.subplots(figsize=(4.6, 4.6))
ax.pcolormesh(x_f[0], x_f[1], (sdf_w < 0).T, cmap='Greys', shading='flat', alpha=0.4)
ax.scatter(ibm_w.coords[:, 0], ibm_w.coords[:, 1], s=6, c='tab:red')
ax.axvline(0.0, color='tab:blue', lw=3, label='x=0 wall patch')
ax.set_aspect('equal'); ax.set_title('body crossing the x=0 wall'); ax.legend(fontsize=8)
plt.show()wall contact per body [axis, (lower, upper)]:
[[[ True False]
[False False]]
[[False False]
[False False]]]
patch shape (full-field rank): (1, 81, 1) labels on x=0 wall: [1]
wall_values shape (BC coefficient): (1, 81, 2)

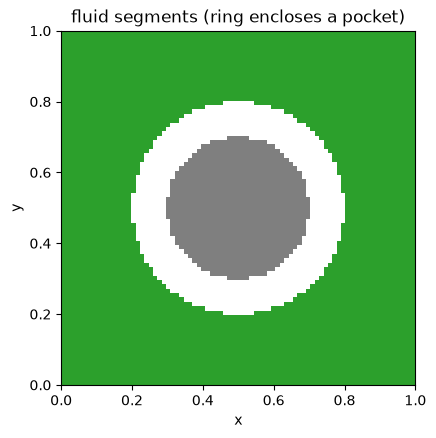

Isolated-pocket detection¶
On the fluid side (region="positive"), a segment that touches no domain
wall is an enclosed pocket. With all-Neumann surroundings such a pocket makes
the operator singular, so it is worth detecting up front. Here a solid ring
encloses one fluid pocket.
r = np.hypot(X - 0.5, Y - 0.5)
sdf_ring = np.abs(r - 0.25) - 0.05 # solid ring 0.20 < r < 0.30
seg_pos = segment_domain(sdf_ring, region='positive')
contact = wall_contact(seg_pos).any(axis=(1, 2))
pockets = np.flatnonzero(~contact) + 1
print('fluid segments:', seg_pos.n_segments, ' isolated pocket labels:', pockets)
fig, ax = plt.subplots(figsize=(4.6, 4.6))
ax.pcolormesh(x_f[0], x_f[1], np.ma.masked_equal(seg_pos.labels, 0).T,
cmap='tab10', vmin=0.5, vmax=seg_pos.n_segments + 0.5, shading='flat')
ax.set_aspect('equal'); ax.set_title('fluid segments (ring encloses a pocket)')
ax.set_xlabel('x'); ax.set_ylabel('y'); plt.show()fluid segments: 2 isolated pocket labels: [2]
