voro_bindings_tess.hpp File Reference

peclet.voro.Tessellation — the bound class over the four MovingTessellation variants. More...

#include "peclet/voro/convex_cell.hpp"
#include "peclet/voro/energy/interface.hpp"
#include "peclet/voro/energy/lloyd.hpp"
#include "peclet/voro/energy/tension.hpp"
#include "peclet/voro/energy/volume.hpp"
#include "peclet/voro/energy/wall.hpp"
#include "peclet/voro/fv/mesh.hpp"
#include "peclet/voro/reeval_tessellation.hpp"
#include "peclet/voro/repair.hpp"
#include "peclet/voro/topology_store.hpp"
#include "voro_bindings_common.hpp"

Include dependency graph for voro_bindings_tess.hpp:

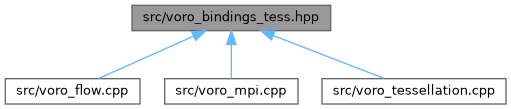

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	peclet::voro::pybind::Tess
struct	peclet::voro::pybind::TessDiagnostics

Namespaces
namespace	peclet
namespace	peclet::voro
	Device-native Voronoi tessellation, geometry and finite-volume physics.
namespace	peclet::voro::pybind

Typedefs
template<bool W, class S >
using	peclet::voro::pybind::MT = peclet::voro::MovingTessellation< real_t, defaults::kMaxPlanes, defaults::kMaxTriangles, W, S >
using	peclet::voro::pybind::MtVariant = std::variant< MT< false, NoSdfT >, MT< true, NoSdfT >, MT< false, SceneT >, MT< true, SceneT > >

Functions
nb::dict	peclet::voro::pybind::repairStatsDict (const peclet::voro::RepairStats &st)

Detailed Description

peclet.voro.Tessellation — the bound class over the four MovingTessellation variants.

The class lives in a header because Flow (voro_flow.cpp) and the distributed drivers (voro_mpi.cpp) name it. face_mesh() is DECLARED here and DEFINED in voro_tessellation.cpp: it is the only method a second TU calls, and its body instantiates reevalPublish / buildAuxMaps / buildFaceMesh for all four variants — i.e. the whole point of the split would be lost if it were inline (QUALITY_PLAN G.8, the same discipline as flow's flow_solver_staggered.cpp).
