Background¶
This notebook the couping of a two-dimensional convection-diffusion equation with a surface reaction on a wall. The lower wall has its own surface state:
the gas-phase surface concentrations are extra unknowns;
those gas surface concentrations are the Dirichlet boundary values for the bulk;
gas surface equations balance wall-normal flux and surface reaction source terms;
additional surface species obey implicit accumulation plus reaction terms.
The implementation uses construct_grad(..., shapes_d=...) to expose the boundary values as a separate variable block and update_array_indices to embed local sparse operators into one monolithic Jacobian.
Governing Equations¶
For gas species A and B in the bulk, the transient convection-diffusion equation is solved with backward Euler:
At the catalytic lower wall, the bulk concentration is constrained by the surface gas variables:
The gas surface variables are algebraic. Their wall-normal diffusive flux is balanced against the gas part of the surface mechanism:
The surface species are A*, two-site B*, and vacancies *:
They are also advanced with backward Euler:
Because B* occupies two sites, the conserved site occupancy is
Parameters and Assumptions¶
The bulk shape is (n_z, n_y, n_gas). The global state is stored as a two-dimensional block array (n_z, n_bulk_fields + n_surface_fields) so that each axial cell contains its bulk cross-section and its surface state.
from __future__ import annotations
from dataclasses import dataclass
from pathlib import Path
import sys
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy.sparse import identity
from pymrm import (
NumJac,
construct_convflux_upwind,
construct_div,
construct_grad,
newton,
update_array_indices,
)
@dataclass
class Surface2DConfig:
n_z: int = 40
n_y: int = 30
n_gas: int = 2
n_theta: int = 3
length: float = 1.0
height: float = 0.15
velocity: float = 1.0
d_ax: float = 0.01
d_y: float = 0.02
c_in: tuple[float, float] = (1.0, 0.0)
k_ads: float = 2.0
k_rxn: float = 1.0
k_des: float = 0.7
dt: float = 0.05
n_steps: int = 20
tol: float = 1.0e-9
maxfev: int = 20
cfg = Surface2DConfig()
PyMRM Implementation¶
The lower wall Dirichlet values are not constants. In the transverse gradient operator, shapes_d=((n_z, 1, n_gas), None) creates a matrix that maps the separate surface gas variables into the lower-wall boundary contribution. All matrices are kept in CSC format so update_array_indices can embed the bulk, surface-gas, and surface-species blocks into the global Jacobian.
The time derivative is represented as a constant sparse identity block for the bulk gas variables. The previous bulk state and previous surface coverages are updated after every successful implicit time step.
class SurfaceReaction2DModel:
def __init__(self, cfg: Surface2DConfig):
self.cfg = cfg
self.n_bulk_fields = cfg.n_y * cfg.n_gas
self.n_surface_fields = cfg.n_gas + cfg.n_theta
self.bulk_shape = (cfg.n_z, cfg.n_y, cfg.n_gas)
self.bulk_block_shape = (cfg.n_z, self.n_bulk_fields)
self.surface_shape = (cfg.n_z, self.n_surface_fields)
self.surface_gas_shape = (cfg.n_z, cfg.n_gas)
self.theta_shape = (cfg.n_z, cfg.n_theta)
self.global_shape = (cfg.n_z, self.n_bulk_fields + self.n_surface_fields)
self._build_grid()
self._init_state()
self._build_operators()
self.numjac_surface = NumJac(self.surface_shape)
self.snapshots = [{"time": 0.0, "u": self.u.copy()}]
def _build_grid(self):
cfg = self.cfg
self.z_f = np.linspace(0.0, cfg.length, cfg.n_z + 1)
self.z_c = 0.5 * (self.z_f[:-1] + self.z_f[1:])
self.y_f = np.linspace(0.0, cfg.height, cfg.n_y + 1)
self.y_c = 0.5 * (self.y_f[:-1] + self.y_f[1:])
def _init_state(self):
cfg = self.cfg
self.u = np.zeros(self.global_shape)
bulk = self.bulk(self.u)
bulk[..., 0] = cfg.c_in[0]
bulk[..., 1] = cfg.c_in[1]
surface = self.surface(self.u)
surface[:, 0] = cfg.c_in[0]
surface[:, 1] = cfg.c_in[1]
surface[:, 2] = 0.0 # A*
surface[:, 3] = 0.0 # B*
surface[:, 4] = 1.0 # vacant sites
self.bulk_old = bulk.copy()
self.theta_old = surface[:, cfg.n_gas :].copy()
def bulk(self, u):
return u[:, : self.n_bulk_fields].reshape(self.bulk_shape)
def surface(self, u):
return u[:, self.n_bulk_fields :]
def _embed(self, matrix, row_shape, col_shape, row_offset, col_offset):
return update_array_indices(
matrix,
(row_shape, col_shape),
(self.global_shape, self.global_shape),
offset=(row_offset, col_offset),
)
def _build_operators(self):
cfg = self.cfg
c_in = np.array(cfg.c_in).reshape(1, 1, cfg.n_gas)
bc_z = (
{"a": cfg.d_ax, "b": cfg.velocity, "d": cfg.velocity * c_in},
{"a": 1.0, "b": 0.0, "d": np.zeros((1, 1, cfg.n_gas))},
)
conv_z_mat, conv_z_bc = construct_convflux_upwind(
self.bulk_shape, self.z_f, self.z_c, bc=bc_z, v=cfg.velocity, axis=0)
grad_z_mat, grad_z_bc = construct_grad(
self.bulk_shape, self.z_f, self.z_c, bc=bc_z, axis=0)
div_z_mat = construct_div(self.bulk_shape, self.z_f, nu=0, axis=0)
jac_z = div_z_mat @ (conv_z_mat - cfg.d_ax * grad_z_mat)
g_z = (div_z_mat @ (conv_z_bc - cfg.d_ax * grad_z_bc)).toarray().reshape(self.bulk_shape)
# Lower wall Dirichlet value is supplied by the surface gas variables.
# Upper wall is no flux.
bc_y = (
{"a": 0.0, "b": 1.0, "d": np.ones((cfg.n_z, 1, cfg.n_gas))},
{"a": 1.0, "b": 0.0, "d": np.zeros((cfg.n_z, 1, cfg.n_gas))},
)
grad_y_mat, grad_y_bc_lower, _grad_y_bc_upper = construct_grad(
self.bulk_shape,
self.y_f,
self.y_c,
bc=bc_y,
axis=1,
shapes_d=((cfg.n_z, 1, cfg.n_gas), None)
)
div_y_mat = construct_div(self.bulk_shape, self.y_f, nu=0, axis=1)
jac_y_bulk = div_y_mat @ (-cfg.d_y * grad_y_mat)
jac_y_surface = div_y_mat @ (-cfg.d_y * grad_y_bc_lower)
self.jac_transport = self._embed(
jac_z + jac_y_bulk,
self.bulk_block_shape,
self.bulk_block_shape,
(0, 0),
(0, 0),
)
self.jac_transport += self._embed(
jac_y_surface,
self.bulk_block_shape,
self.surface_gas_shape,
(0, 0),
(0, self.n_bulk_fields),
)
bulk_identity = identity(np.prod(self.bulk_block_shape)) / cfg.dt
self.jac_bulk_accumulation = self._embed(
bulk_identity,
self.bulk_block_shape,
self.bulk_block_shape,
(0, 0),
(0, 0),
)
self.g_const = np.zeros(self.global_shape)
self.g_const[:, : self.n_bulk_fields] = g_z.reshape(self.bulk_block_shape)
# Reuse the same lower-wall gradient pieces for the surface gas flux balances.
z_ids = np.arange(cfg.n_z).reshape(-1, 1)
gas_ids = np.arange(cfg.n_gas).reshape(1, -1)
lower_face_rows = np.ravel_multi_index(
(z_ids, np.zeros((cfg.n_z, 1), dtype=int), gas_ids),
(cfg.n_z, cfg.n_y + 1, cfg.n_gas),
).ravel()
flux_from_bulk = cfg.d_y * grad_y_mat[lower_face_rows, :]
flux_from_surface = cfg.d_y * grad_y_bc_lower[lower_face_rows, :]
self.jac_transport += self._embed(
flux_from_bulk,
self.surface_gas_shape,
self.bulk_block_shape,
(0, self.n_bulk_fields),
(0, 0),
)
self.jac_transport += self._embed(
flux_from_surface,
self.surface_gas_shape,
self.surface_gas_shape,
(0, self.n_bulk_fields),
(0, self.n_bulk_fields),
)
self.jac_linear = self.jac_transport + self.jac_bulk_accumulation
def surface_reaction_residual(self, surface):
cfg = self.cfg
c_A_s = surface[:, 0]
theta_A = surface[:, 2]
theta_B = surface[:, 3]
theta_v = surface[:, 4]
r_ads = cfg.k_ads * c_A_s * theta_v
r_dim = cfg.k_rxn * theta_A**2
r_des = cfg.k_des * theta_B
residual = np.zeros_like(surface)
residual[:, 0] = -r_ads
residual[:, 1] = r_des
residual[:, 2] = (theta_A - self.theta_old[:, 0]) / cfg.dt - (r_ads - 2.0 * r_dim)
residual[:, 3] = (theta_B - self.theta_old[:, 1]) / cfg.dt - (r_dim - r_des)
residual[:, 4] = (theta_v - self.theta_old[:, 2]) / cfg.dt - (-r_ads + 2.0 * r_des)
return residual
def residual(self, u):
u = u.reshape(self.global_shape)
surface = self.surface(u)
g = self.g_const + (self.jac_linear @ u.ravel()).reshape(self.global_shape)
g[:, : self.n_bulk_fields] -= self.bulk_old.reshape(self.bulk_block_shape) / self.cfg.dt
g_surface, jac_surface = self.numjac_surface(self.surface_reaction_residual, surface)
g[:, self.n_bulk_fields :] += g_surface
jac = self.jac_linear + self._embed(
jac_surface,
self.surface_shape,
self.surface_shape,
(0, self.n_bulk_fields),
(0, self.n_bulk_fields),
)
return g.ravel(), jac
def step(self):
result = newton(self.residual, self.u, tol=self.cfg.tol, maxfev=self.cfg.maxfev)
self.u = result.x.reshape(self.global_shape)
self.bulk_old = self.bulk(self.u).copy()
self.theta_old = self.surface(self.u)[:, self.cfg.n_gas :].copy()
return result
def solve(self):
rows = []
for step in range(self.cfg.n_steps):
result = self.step()
time = (step + 1) * self.cfg.dt
surface = self.surface(self.u)
self.snapshots.append({"time": time, "u": self.u.copy()})
rows.append(
{
"step": step + 1,
"time": time,
"success": result.success,
"Newton iterations": result.nit,
"residual norm": np.linalg.norm(result.fun, ord=np.inf),
"outlet A average": self.bulk(self.u)[-1, :, 0].mean(),
"outlet B average": self.bulk(self.u)[-1, :, 1].mean(),
"mean theta_A": surface[:, 2].mean(),
"mean theta_B": surface[:, 3].mean(),
"mean theta_v": surface[:, 4].mean(),
}
)
return pd.DataFrame(rows)
def site_balance_error(self):
theta = self.surface(self.u)[:, self.cfg.n_gas :]
site_occupancy = theta[:, 0] + 2.0 * theta[:, 1] + theta[:, 2]
return np.max(np.abs(site_occupancy - 1.0))
Results¶
model = SurfaceReaction2DModel(cfg)
history = model.solve()
history.tail()
_next_step_g, jac = model.residual(model.u)
final_step_residual_norm = history["residual norm"].iloc[-1]
summary = pd.Series(
{
"final time": history["time"].iloc[-1],
"final step residual norm": final_step_residual_norm,
"next step initial residual norm": np.linalg.norm(_next_step_g, ord=np.inf),
"Jacobian nnz": jac.nnz,
"outlet A average": model.bulk(model.u)[-1, :, 0].mean(),
"outlet B average": model.bulk(model.u)[-1, :, 1].mean(),
"weighted site-balance error": model.site_balance_error(),
}
)
summary
final time 1.000000e+00
final step residual norm 3.659295e-13
next step initial residual norm 3.683840e-01
Jacobian nnz 1.244000e+04
outlet A average 1.699315e-01
outlet B average 1.270338e-02
weighted site-balance error 4.440892e-16

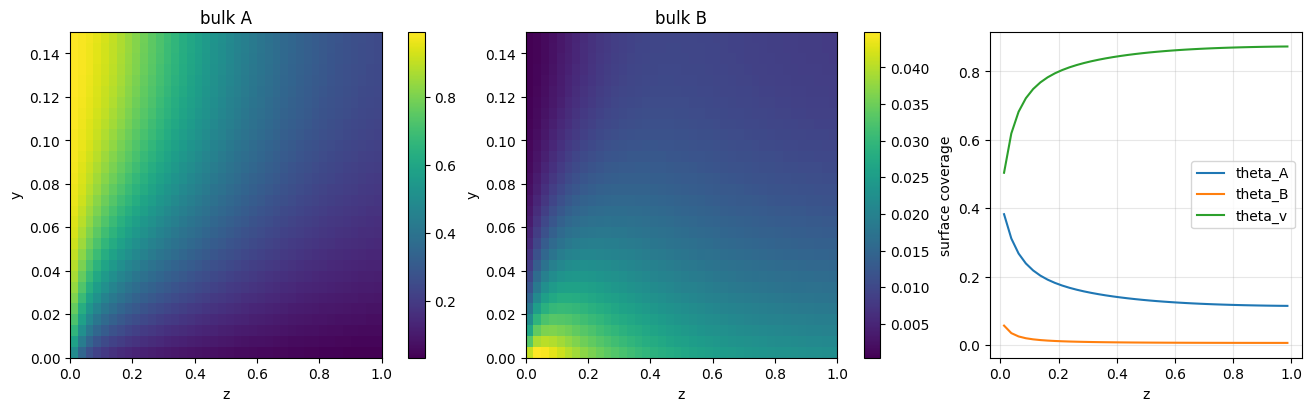

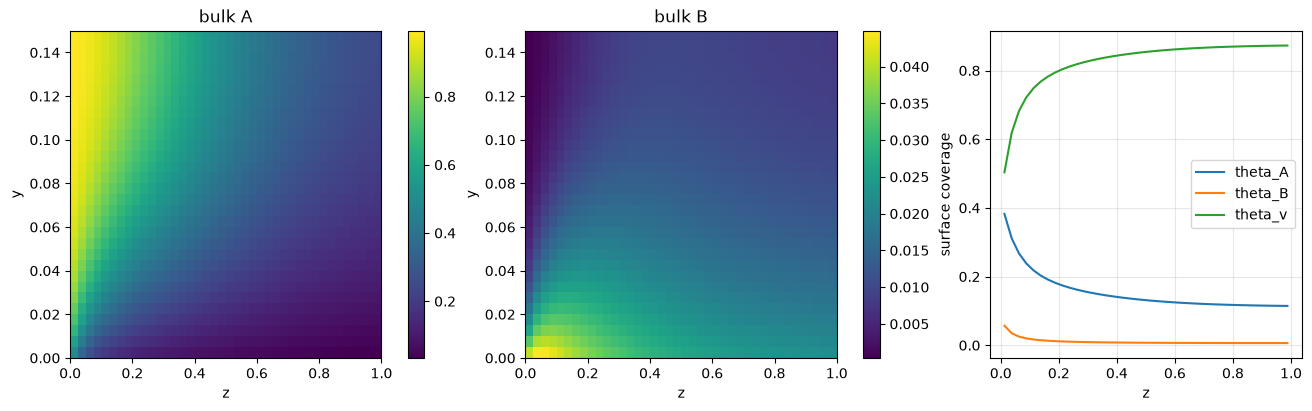

dtype: float64bulk = model.bulk(model.u)
surface = model.surface(model.u)
fig, ax = plt.subplots(1, 3, figsize=(13, 4), constrained_layout=True)
mesh0 = ax[0].pcolormesh(model.z_f, model.y_f, bulk[:, :, 0].T, shading="auto")
ax[0].set_title("bulk A")
ax[0].set_xlabel("z")
ax[0].set_ylabel("y")
fig.colorbar(mesh0, ax=ax[0])
mesh1 = ax[1].pcolormesh(model.z_f, model.y_f, bulk[:, :, 1].T, shading="auto")
ax[1].set_title("bulk B")
ax[1].set_xlabel("z")
ax[1].set_ylabel("y")
fig.colorbar(mesh1, ax=ax[1])
ax[2].plot(model.z_c, surface[:, 2], label="theta_A")
ax[2].plot(model.z_c, surface[:, 3], label="theta_B")
ax[2].plot(model.z_c, surface[:, 4], label="theta_v")
ax[2].set_xlabel("z")
ax[2].set_ylabel("surface coverage")
ax[2].legend()
ax[2].grid(True, alpha=0.3)
plt.show()

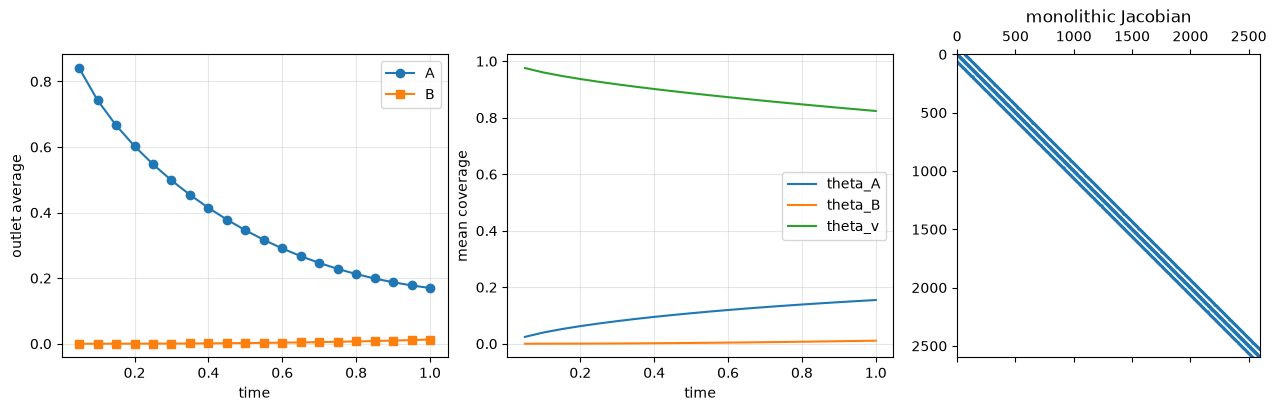

fig, ax = plt.subplots(1, 3, figsize=(13, 4), constrained_layout=True)
ax[0].plot(history["time"], history["outlet A average"], marker="o", label="A")
ax[0].plot(history["time"], history["outlet B average"], marker="s", label="B")
ax[0].set_xlabel("time")
ax[0].set_ylabel("outlet average")
ax[0].legend()
ax[0].grid(True, alpha=0.3)
ax[1].plot(history["time"], history["mean theta_A"], label="theta_A")
ax[1].plot(history["time"], history["mean theta_B"], label="theta_B")
ax[1].plot(history["time"], history["mean theta_v"], label="theta_v")
ax[1].set_xlabel("time")
ax[1].set_ylabel("mean coverage")
ax[1].legend()
ax[1].grid(True, alpha=0.3)
ax[2].spy(jac, markersize=0.5)
ax[2].set_title("monolithic Jacobian")
plt.show()
Validation¶
The validation checks are deliberately simple:
surface weighted surface site occupancy remains conserved;
concentrations and coverages stay non-negative;
the transient solution moves away from the uniform initial bulk state because A is adsorbed and converted at the wall;
the final monolithic residual for the last implicit time step is small.
validation = pd.DataFrame(
{
"value": [
f"{model.site_balance_error():.3e}",
bool(np.all(model.bulk(model.u) >= -1.0e-10)),
bool(np.all(model.surface(model.u) >= -1.0e-10)),
bool(model.bulk(model.u)[-1, :, 0].mean() < cfg.c_in[0]),
f"{final_step_residual_norm:.3e}",
bool(final_step_residual_norm < 10 * cfg.tol),
]
},
index=[
"weighted site-balance error",
"bulk nonnegative",
"surface nonnegative",
"A outlet lower than inlet",
"final step residual norm",
"final step residual below tolerance",
],
)
validation
Discussion¶
This formulation separates three ideas that are often conflated:
surface gas concentrations are boundary values for the bulk;
flux balances determine those surface gas concentrations;
additional surface species have their own accumulation and reaction equations.
The important PyMRM pattern is the combination of shapes_d for variable boundary data and update_array_indices for placing each local operator in the global monolithic state.
