Background¶
This notebook replaces the simple one-dimensional membrane bridge with a two-dimensional shell-in-tube membrane module. The retentate occupies the inner cylindrical channel, the permeate occupies the surrounding annulus, and the membrane couples both domains at their shared radial interface.
The example focuses on the monolithic coupling pattern: each side has its own transport operators, while the membrane boundary values are eliminated into one sparse linear system.
Governing Equations¶
Both domains use steady axial convection with radial diffusion:
The retentate flows from to . The permeate is represented as a counter-current stream by using a negative axial velocity, so its inlet is at .
At the membrane interface the coupled boundary conditions are
The radius ratio accounts for the different cylindrical surface areas on each side of the thin membrane gap.
Parameters and Assumptions¶
The state layout is (n_z, n_r_ret + n_r_perm). The first radial block is the retentate and the second block is the permeate. Axial coordinate arrays use suffixes _f and _c for faces and cell centers; the same convention is used for radial grids.
The model is linear for the chosen membrane law, so spsolve is sufficient. The residual method is still provided because it is the most useful place to check the assembled monolithic system.
from __future__ import annotations
from dataclasses import dataclass
from pathlib import Path
import sys
import matplotlib.pyplot as plt
import numpy as np
from scipy.sparse.linalg import spsolve
for candidate in (Path.cwd(), Path.cwd().parent):
pymrm_src = candidate / "pymrm" / "src"
if pymrm_src.exists() and str(pymrm_src) not in sys.path:
sys.path.insert(0, str(pymrm_src))
from pymrm import (
compute_boundary_values,
construct_convflux_upwind,
construct_div,
construct_grad,
construct_interface_matrices,
update_array_indices,
)
@dataclass
class MembraneConfig:
length: float = 0.20
d_eff: float = 1.0e-4
permeability: float = 2.0e-3
velocity_ret: float = 1.0e-1
velocity_perm: float = 1.0e-1
c_ret_in: float = 1.0
c_perm_in: float = 0.0
radius_ret: float = 5.0e-3
membrane_gap: float = 5.0e-4
radius_out: float = 7.0e-3
n_z: int = 100
n_r_ret: int = 30
n_r_perm: int = 30
@property
def radius_perm(self) -> float:
return self.radius_ret + self.membrane_gap
cfg = MembraneConfig()
PyMRM Implementation¶
class MembraneModule2D:
def __init__(self, cfg: MembraneConfig):
self.cfg = cfg
self.shape_ret = (cfg.n_z, cfg.n_r_ret)
self.shape_perm = (cfg.n_z, cfg.n_r_perm)
self.shape = (cfg.n_z, cfg.n_r_ret + cfg.n_r_perm)
self._build_grid()
self._build_boundary_conditions()
self._build_operators()
def _build_grid(self):
cfg = self.cfg
self.z_f = np.linspace(0.0, cfg.length, cfg.n_z + 1)
self.z_c = 0.5 * (self.z_f[:-1] + self.z_f[1:])
self.r_f_ret = np.linspace(0.0, cfg.radius_ret, cfg.n_r_ret + 1)
self.r_c_ret = 0.5 * (self.r_f_ret[:-1] + self.r_f_ret[1:])
self.r_f_perm = np.linspace(cfg.radius_perm, cfg.radius_out, cfg.n_r_perm + 1)
self.r_c_perm = 0.5 * (self.r_f_perm[:-1] + self.r_f_perm[1:])
self.dz = np.diff(self.z_f).reshape((-1, 1))
self.area_ret = np.pi * (self.r_f_ret[1:]**2 - self.r_f_ret[:-1]**2).reshape((1, -1))
self.area_perm = np.pi * (self.r_f_perm[1:]**2 - self.r_f_perm[:-1]**2).reshape((1, -1))
self.area_membrane = 2.0 * np.pi * cfg.radius_ret * self.dz
def _build_boundary_conditions(self):
cfg = self.cfg
# Retentate axial inlet/outlet: c=c_ret_in at z=0, zero gradient at z=L.
self.bc_z_ret = (
{"a": 0.0, "b": 1.0, "d": cfg.c_ret_in},
{"a": 1.0, "b": 0.0, "d": 0.0},
)
# Permeate counter-current inlet/outlet: zero gradient at z=0, c=c_perm_in at z=L.
self.bc_z_perm = (
{"a": 1.0, "b": 0.0, "d": 0.0},
{"a": 0.0, "b": 1.0, "d": cfg.c_perm_in},
)
self.bc_r_ret_solve = (
{"a": 1.0, "b": 0.0, "d": 0.0},
{"a": 0.0, "b": 1.0, "d": 1.0},
)
self.bc_r_perm_solve = (
{"a": 0.0, "b": 1.0, "d": 1.0},
{"a": 1.0, "b": 0.0, "d": 0.0},
)
def _axial_operator(self, shape, velocity, bc):
conv_mat, conv_bc = construct_convflux_upwind(
shape,
self.z_f,
self.z_c,
bc=bc,
v=velocity,
axis=0,
)
div_mat = construct_div(shape, self.z_f, nu=0, axis=0) # Cartesian axial coordinate.
return div_mat @ conv_mat, div_mat @ conv_bc
def _build_interface_matrices(self):
cfg = self.cfg
ic_flux_ret = {"a": (cfg.d_eff, 0.0), "b": (cfg.permeability, -cfg.permeability), "d": 0.0}
ic_flux_perm = {
"a": (0.0, cfg.radius_perm / cfg.radius_ret * cfg.d_eff),
"b": (-cfg.permeability, cfg.permeability),
"d": 0.0,
}
self.interface_ret_mat, _, self.interface_perm_mat, _ = construct_interface_matrices(
(self.shape_ret, self.shape_perm),
(self.r_f_ret, self.r_f_perm),
ic=(ic_flux_ret, ic_flux_perm),
axis=1,
)
def _build_operators(self):
cfg = self.cfg
self._build_interface_matrices()
jac_conv_ret, g_conv_ret = self._axial_operator(self.shape_ret, cfg.velocity_ret, self.bc_z_ret)
jac_conv_perm, g_conv_perm = self._axial_operator(self.shape_perm, -cfg.velocity_perm, self.bc_z_perm)
grad_ret_mat, _, grad_ret_bc = construct_grad(
self.shape_ret,
self.r_f_ret,
self.r_c_ret,
bc=self.bc_r_ret_solve,
axis=1,
shapes_d=(None, (cfg.n_z, 1)),
)
div_ret_mat = construct_div(self.shape_ret, self.r_f_ret, nu=1, axis=1)
jac_ret_local = jac_conv_ret - cfg.d_eff * div_ret_mat @ grad_ret_mat
jac_ret_interface = -cfg.d_eff * div_ret_mat @ grad_ret_bc @ self.interface_ret_mat
g_ret = g_conv_ret
grad_perm_mat, grad_perm_bc, _ = construct_grad(
self.shape_perm,
self.r_f_perm,
self.r_c_perm,
bc=self.bc_r_perm_solve,
axis=1,
shapes_d=((cfg.n_z, 1), None),
)
div_perm_mat = construct_div(self.shape_perm, self.r_f_perm, nu=1, axis=1)
jac_perm_local = jac_conv_perm - cfg.d_eff * div_perm_mat @ grad_perm_mat
jac_perm_interface = -cfg.d_eff * div_perm_mat @ grad_perm_bc @ self.interface_perm_mat
g_perm = g_conv_perm
self.jac_const = update_array_indices(jac_ret_local, self.shape_ret, self.shape)
self.jac_const += update_array_indices(
jac_perm_local,
self.shape_perm,
self.shape,
offset=(0, cfg.n_r_ret),
)
self.jac_const += update_array_indices(
jac_ret_interface,
(self.shape_ret, None),
(self.shape, None),
)
self.jac_const += update_array_indices(
jac_perm_interface,
(self.shape_perm, None),
(self.shape, None),
offset=((0, cfg.n_r_ret), None),
)
self.g_const = np.zeros(self.shape)
self.g_const[:, : cfg.n_r_ret] = g_ret.toarray().reshape(self.shape_ret)
self.g_const[:, cfg.n_r_ret :] = g_perm.toarray().reshape(self.shape_perm)
def split_state(self, c_all):
c_all = np.asarray(c_all).reshape(self.shape)
return c_all[:, : self.cfg.n_r_ret], c_all[:, self.cfg.n_r_ret :]
def residual(self, c_all):
c_all = np.asarray(c_all).reshape(self.shape)
g = self.g_const + np.asarray(self.jac_const @ c_all.reshape((-1, 1))).reshape(self.shape)
return g.ravel(), self.jac_const
def solve(self):
c_all = spsolve(self.jac_const, -self.g_const.ravel()).reshape(self.shape)
self.c_all = c_all
return c_all
def interface_concentrations(self, c_all):
c_vect = np.asarray(c_all).reshape((-1, 1))
c_b_ret = np.asarray(self.interface_ret_mat @ c_vect).reshape((self.cfg.n_z, 1))
c_b_perm = np.asarray(self.interface_perm_mat @ c_vect).reshape((self.cfg.n_z, 1))
return c_b_ret, c_b_perm
def membrane_flux(self, c_all):
c_b_ret, c_b_perm = self.interface_concentrations(c_all)
return self.cfg.permeability * (c_b_ret - c_b_perm)
def cup_mixing_average(self, c, area_weights):
return np.sum(c * area_weights, axis=1) / np.sum(area_weights)
def postprocess(self, c_all):
cfg = self.cfg
c_ret, c_perm = self.split_state(c_all)
c_ret_in, _, c_ret_out, _ = compute_boundary_values(
c_ret, self.z_f, self.z_c, self.bc_z_ret, axis=0
)
c_perm_out, _, c_perm_in, _ = compute_boundary_values(
c_perm, self.z_f, self.z_c, self.bc_z_perm, axis=0
)
flow_in_ret = cfg.velocity_ret * np.sum(c_ret_in * self.area_ret)
flow_out_ret = cfg.velocity_ret * np.sum(c_ret_out * self.area_ret)
flow_in_perm = cfg.velocity_perm * np.sum(c_perm_in * self.area_perm)
flow_out_perm = cfg.velocity_perm * np.sum(c_perm_out * self.area_perm)
membrane_rate = np.sum(self.membrane_flux(c_all) * self.area_membrane)
total_in = flow_in_ret + flow_in_perm
total_out = flow_out_ret + flow_out_perm
c_ret_avg = self.cup_mixing_average(c_ret, self.area_ret)
c_perm_avg = self.cup_mixing_average(c_perm, self.area_perm)
return {
"flow_in_ret": flow_in_ret,
"flow_out_ret": flow_out_ret,
"flow_in_perm": flow_in_perm,
"flow_out_perm": flow_out_perm,
"membrane_rate": membrane_rate,
"mass_balance_error": abs(total_in - total_out) / max(abs(total_in), 1.0e-30),
"c_ret_avg": c_ret_avg,
"c_perm_avg": c_perm_avg,
}
Results¶
model = MembraneModule2D(cfg)
c_all = model.solve()
c_ret, c_perm = model.split_state(c_all)
g, jac = model.residual(c_all)
summary = model.postprocess(c_all)
{
"residual norm": np.linalg.norm(g, ord=np.inf),
"retentate outlet average": summary["c_ret_avg"][-1],
"permeate outlet average": summary["c_perm_avg"][0],
"integrated membrane rate": summary["membrane_rate"],
"mass-balance error": summary["mass_balance_error"],
"minimum concentration": c_all.min(),
"Jacobian nnz": jac.nnz,
}
{'residual norm': np.float64(2.4787283336991095e-11),
'retentate outlet average': np.float64(0.4568423567718699),
'permeate outlet average': np.float64(0.7246108260639192),
'integrated membrane rate': np.float64(4.271998134341268e-06),
'mass-balance error': np.float64(1.2844647303680583e-12),
'minimum concentration': np.float64(0.007716754242645528),

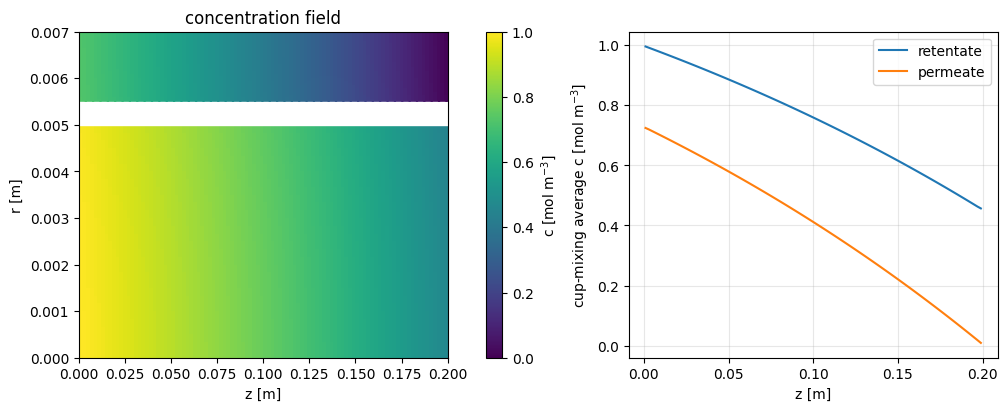

'Jacobian nnz': 23940}fig, ax = plt.subplots(1, 2, figsize=(10, 4), constrained_layout=True)
mesh_ret = ax[0].pcolormesh(model.z_f, model.r_f_ret, c_ret.T, shading="flat", vmin=0.0, vmax=cfg.c_ret_in)
mesh_perm = ax[0].pcolormesh(model.z_f, model.r_f_perm, c_perm.T, shading="flat", vmin=0.0, vmax=cfg.c_ret_in)
ax[0].axhline(cfg.radius_ret, color="white", lw=1.0)
ax[0].axhline(cfg.radius_perm, color="white", lw=1.0, ls="--")
ax[0].set_xlabel("z [m]")
ax[0].set_ylabel("r [m]")
ax[0].set_title("concentration field")
fig.colorbar(mesh_perm, ax=ax[0], label="c [mol m$^{-3}$]")
ax[1].plot(model.z_c, summary["c_ret_avg"], label="retentate")
ax[1].plot(model.z_c, summary["c_perm_avg"], label="permeate")
ax[1].set_xlabel("z [m]")
ax[1].set_ylabel("cup-mixing average c [mol m$^{-3}$]")
ax[1].legend()
ax[1].grid(True, alpha=0.3)
plt.show()

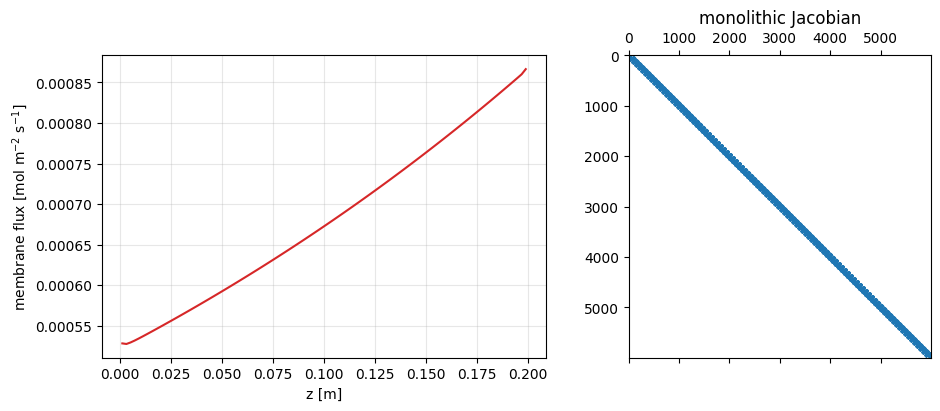

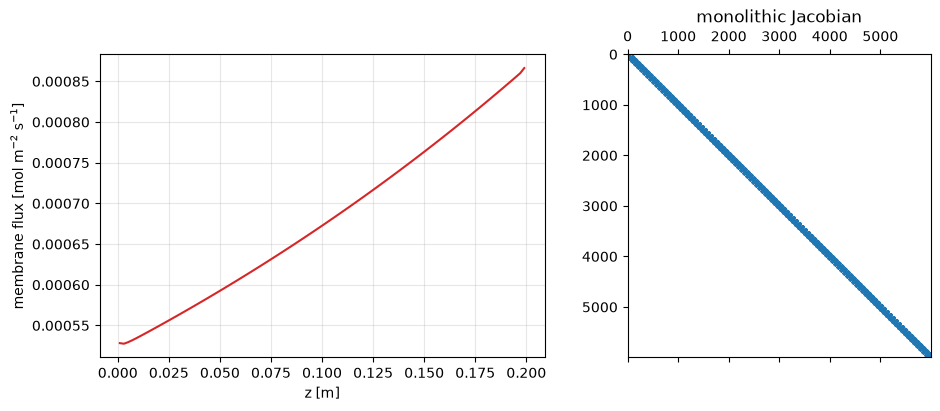

fig, ax = plt.subplots(1, 2, figsize=(10, 4), constrained_layout=True)
ax[0].plot(model.z_c, model.membrane_flux(c_all).ravel(), color="tab:red")
ax[0].set_xlabel("z [m]")
ax[0].set_ylabel("membrane flux [mol m$^{-2}$ s$^{-1}$]")
ax[0].grid(True, alpha=0.3)
ax[1].spy(jac, markersize=0.4)
ax[1].set_title("monolithic Jacobian")
plt.show()
Validation¶
The membrane only transfers material between the two domains, so the sum of retentate and permeate outlet molar flows should match the inlet molar flow. The solution should also remain non-negative and move material from the retentate into the initially clean permeate stream.
{
"mass-balance error": summary["mass_balance_error"],
"retentate depleted": bool(summary["c_ret_avg"][-1] < cfg.c_ret_in),
"permeate enriched": bool(summary["c_perm_avg"][0] > cfg.c_perm_in),
"membrane flux retentate to permeate": bool(np.all(model.membrane_flux(c_all) >= -1.0e-12)),
"nonnegative concentrations": bool(np.all(c_all >= -1.0e-12)),
}
{'mass-balance error': np.float64(1.2844647303680583e-12),
'retentate depleted': True,
'permeate enriched': True,
'membrane flux retentate to permeate': True,
'nonnegative concentrations': True}Discussion¶
The retentate and permeate operators are assembled independently, then embedded into a shared state vector. The interface matrices express the membrane boundary values in terms of neighboring cell-center values, which gives one monolithic sparse solve.
