Compression, pressure and jamming

This notebook follows a compression from a dilute gas to a jammed packing, compares the stopping criteria, and checks that the result is really jammed: a well-defined network of contacts that carries all the force.

# Install spheropack when it is not available (for example on Google Colab).
import importlib.util

if importlib.util.find_spec("spheropack") is None:
    %pip install -q spheropack

import numpy as np
import matplotlib.pyplot as plt
import spheropack as sp
from spheropack import analysis

The course of a compression

density="max" grows the spheres until they jam. history holds one record per measurement window (10 collisions per sphere): the radius scale, the mean and median reduced pressure \(Z = PV/(Nk_BT)\), the temperature and the phase of the jamming protocol.

p = sp.pack(n=2000, density="max", seed=1)
print(p)
h = p.history
phi = p.density * (h["scale"] / h["scale"][-1]) ** 3
print(f"{len(phi)} windows, {p.n_collisions / p.n:.0f} collisions per sphere, {p.wall_time:.1f} s")

Packing(n=2000, dim=3, density=0.640406, status='jammed', reduced_pressure=1.21e+09, n_collisions=8451446, seed=1)
394 windows, 4226 collisions per sphere, 30.8 s

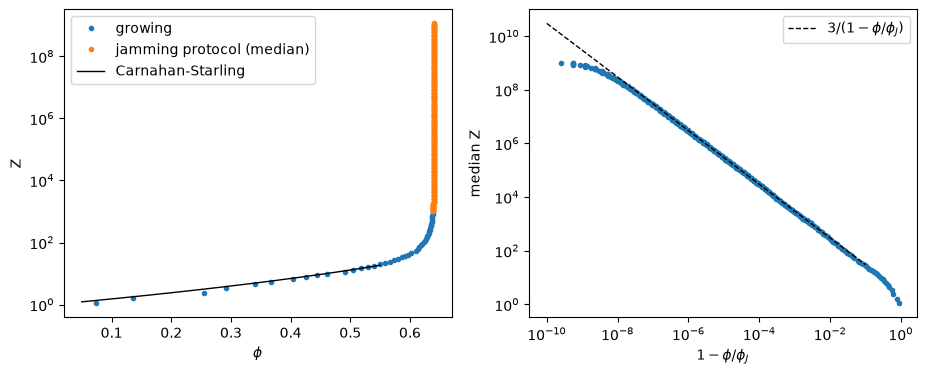

At low density the pressure follows the equilibrium equation of state of hard spheres (Carnahan-Starling): the compression is slow compared with the collision rate. Near jamming the pressure diverges as \(Z \approx 3/(1-\phi/\phi_J)\).

def carnahan_starling(phi):
    return (1 + phi + phi**2 - phi**3) / (1 - phi) ** 3

fig, axes = plt.subplots(1, 2, figsize=(11, 4))
ax = axes[0]
grow = h["phase"] == 0
ax.semilogy(phi[grow], h["reduced_pressure"][grow], ".", label="growing")
ax.semilogy(phi[~grow], h["median_pressure"][~grow], ".", label="jamming protocol (median)")
x = np.linspace(0.05, 0.55, 100)
ax.semilogy(x, carnahan_starling(x), "k-", lw=1, label="Carnahan-Starling")
ax.set_xlabel(r"$\phi$"); ax.set_ylabel("Z"); ax.legend()

ax = axes[1]
phi_j = p.density
ax.loglog(1 - phi / phi_j, h["median_pressure"], ".")
d = np.logspace(-10, -1, 10)
ax.loglog(d, 3 / d, "k--", lw=1, label=r"$3/(1-\phi/\phi_J)$")
ax.set_xlabel(r"$1 - \phi/\phi_J$"); ax.set_ylabel("median Z"); ax.legend();

Is it jammed? Contacts and rattlers

Two spheres are in contact when their gap is below a tolerance. In a jammed packing at pressure \(Z\) the gaps between touching spheres are of order \(d/Z\), and much larger between spheres that do not touch, so the number of contacts has a plateau as a function of the tolerance.

The per-sphere pressure is the time-averaged contact force on a sphere. Spheres without force are rattlers: they sit loose in a cage of jammed neighbours. A frictionless jammed packing is isostatic: the force-bearing spheres have exactly as many contacts as needed for rigidity, \(D(N_\mathrm{nr}-1)\) in a periodic box, so their mean coordination number is close to \(2D = 6\).

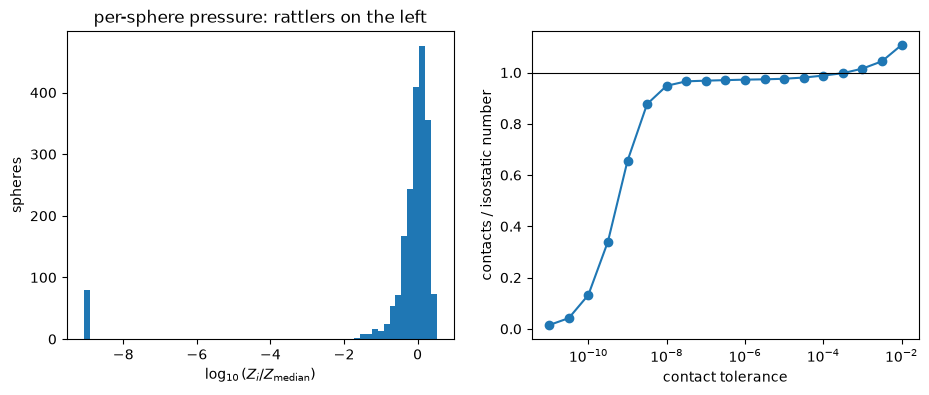

fig, axes = plt.subplots(1, 2, figsize=(11, 4))
axes[0].hist(np.log10(p.sphere_pressure / p.median_pressure), bins=60)
axes[0].set_xlabel(r"$\log_{10}(Z_i / Z_\mathrm{median})$"); axes[0].set_ylabel("spheres")
axes[0].set_title("per-sphere pressure: rattlers on the left")

tols = np.logspace(-11, -2, 19)
iso = [analysis.isostaticity(p, t) for t in tols]
axes[1].semilogx(tols, iso, "o-")
axes[1].axhline(1, color="k", lw=0.8)
axes[1].set_xlabel("contact tolerance"); axes[1].set_ylabel("contacts / isostatic number")
rat = analysis.rattlers(p)
print(f"rattlers: {rat.sum()} of {p.n} ({100 * rat.mean():.1f}%)")

rattlers: 80 of 2000 (4.0%)

Below a tolerance of about \(10^{-8}\) (the gap scale \(d/Z\) at \(Z=10^9\)) contacts are missed; above about \(10^{-4}\) near neighbours that do not touch are counted. In between lies the plateau, slightly below the isostatic number: a compression at a finite rate leaves a few percent of the contacts unformed. A slower protocol comes closer to 1 (see the user guide on stopping criteria).

Pressure versus Jammed

Pressure(value) stops as soon as the mean pressure exceeds value, while the spheres keep growing. The density is almost the same, but the contact network is not yet formed: there is no plateau.

q = sp.pack(n=2000, density="max", stop=sp.stop.Pressure(1e6), seed=1)
print(q)
z_q = [analysis.contact_numbers(q, t).mean() for t in tols]
z_p = [analysis.contact_numbers(p, t).mean() for t in tols]

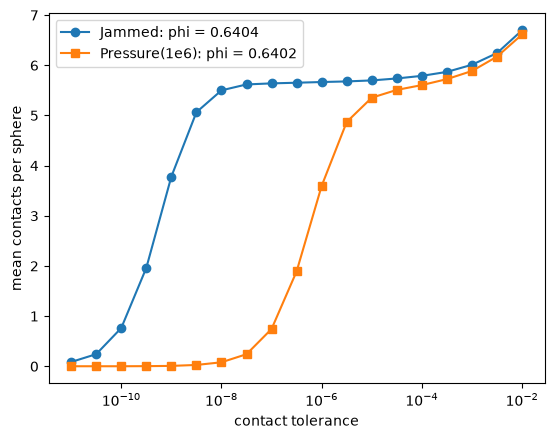

plt.semilogx(tols, z_p, "o-", label=f"Jammed: phi = {p.density:.4f}")
plt.semilogx(tols, z_q, "s-", label=f"Pressure(1e6): phi = {q.density:.4f}")
plt.xlabel("contact tolerance"); plt.ylabel("mean contacts per sphere"); plt.legend();

Packing(n=2000, dim=3, density=0.640188, status='pressure', reduced_pressure=1.04e+06, n_collisions=2452045, seed=1)

Budgets and failures

Limit criteria bound the cost. When one fires before the goal is reached, success is False and a PackingWarning is issued; with strict=True a PackingError is raised that carries the partial packing.

import warnings
with warnings.catch_warnings(record=True) as w:
    warnings.simplefilter("always")
    r = sp.pack(n=2000, density=0.7, stop=[sp.stop.Pressure(1e6), sp.stop.Collisions(per_particle=200)], seed=1)
print(r.status, r.success, r.stopped_by)
print(w[0].message)

try:
    sp.pack(n=2000, density=0.7, seed=1, strict=True)
except sp.PackingError as err:
    print("PackingError:", err, "| partial density", round(err.packing.density, 4))

collisions False Collisions(total=None, per_particle=200)
packing stopped with status 'collisions' at density 0.5529 (reduced pressure 19.8)

PackingError: packing stopped with status 'pressure' at density 0.64019 (reduced pressure 1.04e+06) | partial density 0.6402
