sdf.hpp File Reference

#include <Kokkos_Core.hpp>
#include <string>
#include <type_traits>
#include "peclet/core/common/view.hpp"
#include "peclet/core/geom/primitives.hpp"
#include "peclet/core/geom/scene.hpp"
#include "peclet/voro/convex_cell.hpp"

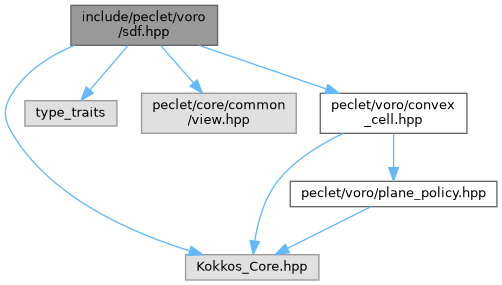

Include dependency graph for sdf.hpp:

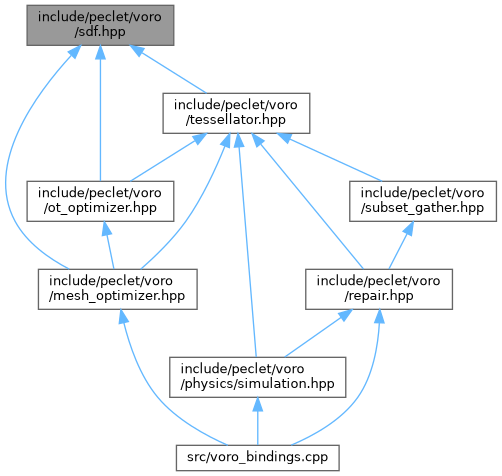

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	peclet::voro::NoSdf
	Sentinel "no geometry" provider — the default; the clip stage is skipped. More...
struct	peclet::voro::TangentOnly< Sdf >
struct	peclet::voro::detail::tangentOnly< T, class >
struct	peclet::voro::detail::tangentOnly< T, std::void_t< decltype(T::kTangentOnly)> >
struct	peclet::voro::SdfSphere< Real >
struct	peclet::voro::SdfBox< Real >
struct	peclet::voro::SdfHollowCylinder< Real >
struct	peclet::voro::SdfGrid< Real >
struct	peclet::voro::SdfScene< Real >
struct	peclet::voro::SdfSpheres< Real, Mem >
struct	peclet::voro::WallStore< Real >

Namespaces
namespace	peclet
namespace	peclet::voro
	Device-native Voronoi tessellation, geometry and finite-volume physics.
namespace	peclet::voro::detail

Functions
template<class Real , class Sdf >
KOKKOS_INLINE_FUNCTION void	peclet::voro::sdfGradient (const Sdf &s, Real x, Real y, Real z, Real g[3])
	Central-difference gradient of any provider with eval() (matches peclet::core::geom::gradient).
template<class Real , class Sdf >
KOKKOS_INLINE_FUNCTION void	peclet::voro::sdfHessian (const Sdf &s, Real x, Real y, Real z, Real H[3][3])
template<class Real , class Sdf >
KOKKOS_INLINE_FUNCTION void	peclet::voro::sdfWallChain (const Sdf &sdf, Real x, Real y, Real z, const double gw[3], double fSelf[3])
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION void	peclet::voro::addSdfWallForce (const ConvexCell< Real, MAXP, MAXT, TrackAdj > &c, const Real seed[3], const Sdf &sdf, const Real *gx, const Real *gy, const Real *gz, Real fSelf[3])
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION int	peclet::voro::sdfSagittaShifts (const ConvexCell< Real, MAXP, MAXT, TrackAdj > &c, const Real seed[3], const Sdf &sdf, const int *planes, const Real *tangency, int nPlanes, Real *delta)
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION bool	peclet::voro::sdfCutPlane (const ConvexCell< Real, MAXP, MAXT, TrackAdj > &c, const Real seed[3], const Sdf &sdf, const Real probe[3], Real radius, Real pv[3], Real &off, Real surf[3])
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION bool	peclet::voro::sdfWouldClip (const ConvexCell< Real, MAXP, MAXT, TrackAdj > &c, const Real seed[3], const Sdf &sdf)
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION bool	peclet::voro::clipCellAgainstSdf (ConvexCell< Real, MAXP, MAXT, TrackAdj > &c, const Real seed[3], const Sdf &sdf)
template<class Real , int MAXP, int MAXT, bool TrackAdj, class Sdf >
KOKKOS_INLINE_FUNCTION void	peclet::voro::sdfWallFD (const ConvexCell< Real, MAXP, MAXT, TrackAdj > &unclipped, const Real seed[3], const Sdf &sdf, Real h, Real dV[3], Real dA[3])

Variables
constexpr int	peclet::voro::kBoundaryFacet = -2
template<class T >
constexpr bool	peclet::voro::detail::tangentOnly_v = tangentOnly<T>::value
constexpr int	peclet::voro::kMaxWallPlanes = 24
